B Series Boiler Economizers

Cain Industries B Series Boiler Economizers

B Series

Minimum Cost Easy Installation Maximum Savings

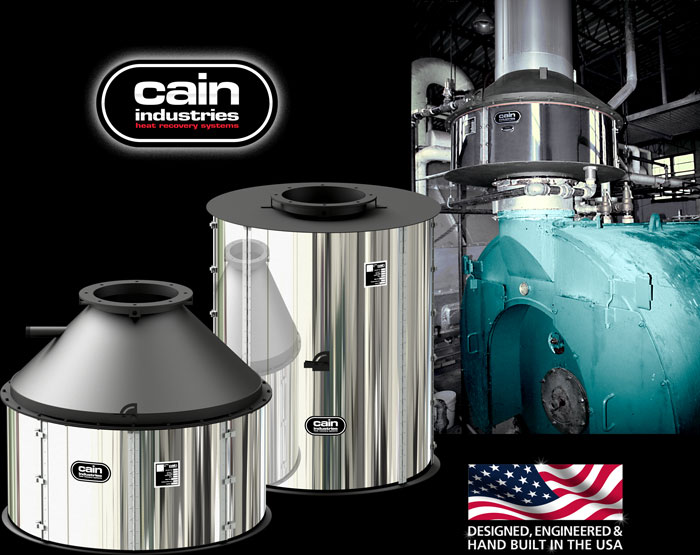

The B Series boiler economizer is comprised of 14 standard models. An “off the shelf” unit, it is designed primarily for boilers with round stacks and a combustion capacity of 40 to 800 BHP with entering gas temperatures between 300° and 700°F. The standard stack connections can be easily modified to fit specific boiler stacks with 10" to 34" diameters, alleviating the cost of stack adapters. The units come standard either with 4 or 6 fins per inch (fpi) spacings for operation with No. 2 fuel oil and/or natural gas and depending on the efficiency of the combustion. With its lightweight design and exclusive AL-FUSE™ heat transfer surface, installation is fast and costs are kept to a minimum. Use the chart at the bottom of the page to select the B Series unit that is best suited to your application.

Combustion Sources
Steam boilers and hot water boilers

Boiler Exhaust Application
Capacity: 40 to 800 BHP
Entering Gas Temps: 300°F to 700°F
Heat Sink Types: boiler feedwater, hot water return, hot water storage tank, condensate tank and process water

Features
  • Hinged stainless steel access door panels
  • Internal thermal expansion design
  • Mounting flanges for bolting to mating flanges or adapters
  • Stainless steel internal exhaust bypass assembly
  • Quick release tension latches for doors
  • Optional sootblower assembly
  • Vertical or horizontal installation

B Series Model Selection

ModelBHPH.S.Ft2Dia.HeightWeight
in LBS
Stack Flange Conn.IDWater
Conn.
NPT
Sootblower
Conn.
Drain
Catch Ring
Conn.
Total Weight
w/Insulation
& Stblr.
6FPI4FPIIDB.C.Holes
B044091N/A3015.5175121481N/A1/2210
B0770126N/A3019.5190121481N/A1/2250
B10100721193623.5220121481N/A1/2300
B121252181513627.5260161881N/A1/2345
B151502631823631.5300161881N/A1/2390
B202003842654224.535020213/41211/41N/A450
B252504863364228.539020213/41211/41N/A490
B303006354404830.044024257/81211/211/4N/A550
B353507204984832.048524257/81211/211/4N/A600
B404008055574834.055024257/81211/211/4N/A645
B505009326454838.059024257/81211/211/4N/A700
B6060010597334842.965030323/81611/211/4N/A760
B7070011868214846.069030323/81611/211/4N/A830
B8080013139094850.075030323/81611/211/4N/A890
